ST12 Evolution

Od 15 600  s DPH

12 výkonných 11W LED diod (premiová „řada“)
decentní, nizkoprofilový design usnadňuje instalaci
dynamické řízení výkonu optimalizuje světelný výkon, tak aby byla životnost LED maximálně prodloužena
ultra-reflexní optika zajišťuje „závodní“ vzorec paprsku
elektronický teplotní management
předem ošetřeno proti korozi pro maximální odolnost
eloxovaný hliníkový chladič zajišťuje zlepšenou tepelnou dynamiku (v sekci ke stažení najdete instrukce k údržbě)
homologace ECE pro použití v silničním provozu
záruka 5 let
„nerozbitná“ polykarbonátová čočka s doživotní zárukou*
certifika IP69K
dodáváno s 30 cm kabelem s konektory (samec a samice)
vyrobeno ve Velké Británii
*dle stanovených podmínek

Katalogové číslo: 0012-EVO-B-SET Kategorie: ,

Popis

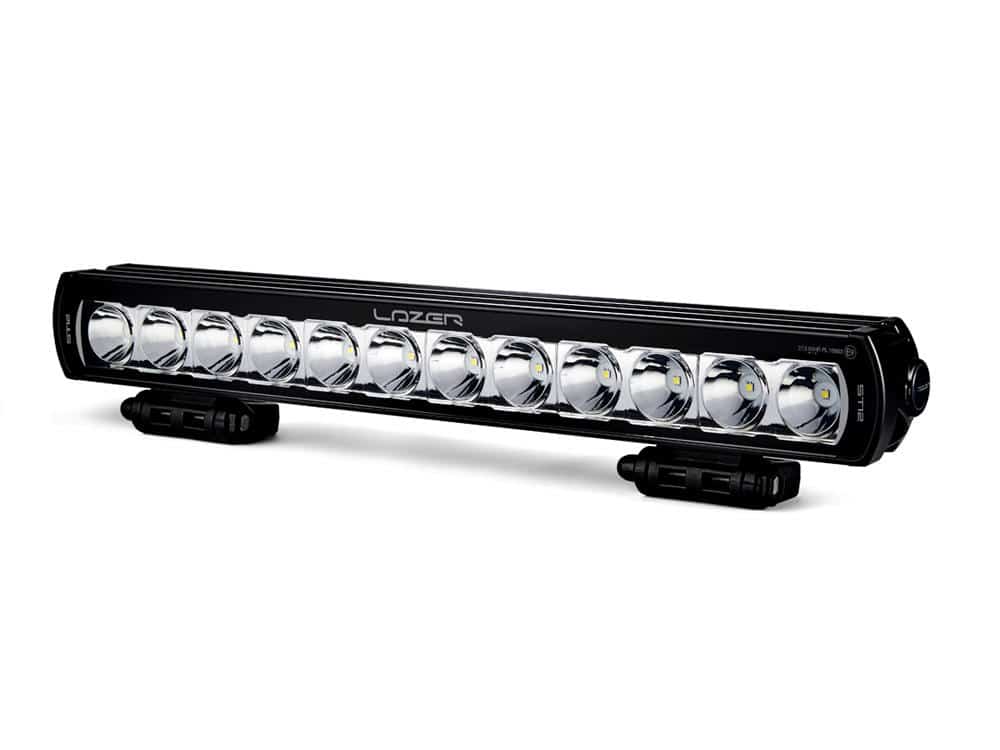

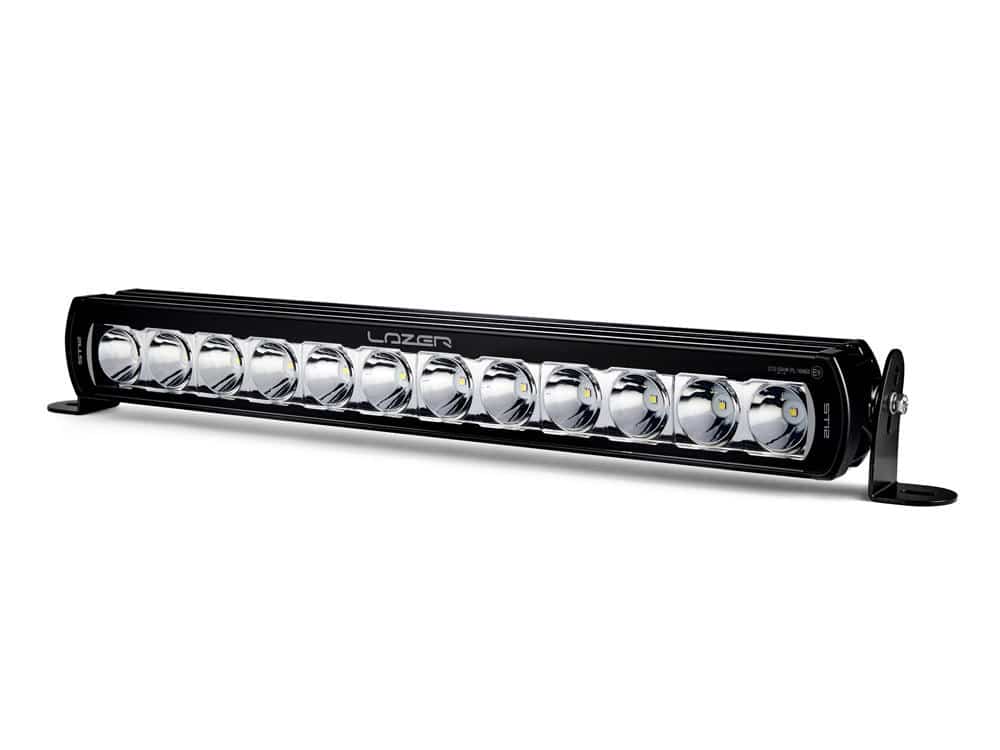

An exciting addition to the ST range of road-legal driving lights, the ST12 Evolution at just under 21” is the ideal choice for people looking for either: the ultimate road-legal lighting solution, in the form of a pair of lamps mounted across a roof bar, or customers looking for a single light bar option which alone delivers 1 lux to just under 500m. Despite its impressive range, the spread and even distribution of light in the short and mid-range make the ST12 the premium choice for everyday road and off-road applications.

Upgraded high-density 11W LEDs are carefully selected for their high ‘bin’ rating, and in the case of the ST12 Evolution deliver 12,408 lumens. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallised reflectors, harness the light output into a ‘Drive’ beam pattern optimised for lower speed applications where the priority is for good all-round visibility, albeit still with enviable distance illumination. The colour temperature of the LEDs at 5000 kelvin has also been specifically selected to maximise sharpness and definition, while proven to reduce eye-strain associated with some higher (blue-white) colour temperatures.

Performance aside, the ST12 Evolution is built to last. With a 5 year warranty as standard, and a lifetime guarantee on the ‘unbreakable’ polycarbonate lens, which is coated with a hardcoat lacquer to protect against any scratches, the lamp is capable of withstanding the harshest environments. An IP69K rating certifies the lamp will not be subjected to moisture or dust ingress, with additional counter-measures to ensure the unit remains fully contained even in the most extreme of temperatures and humidity. The full aluminium housing gives the lamp its strength and rigidity, while an e-coat pre-treatment provides automotive quality corrosion resistance. Dynamic drive modulation optimises light output considering the thermal conditions of the lamp (preserving the longevity of the LEDs).

With a seamless, low profile design, the new ST Evolution range is now not only easier to install, but is more resistant to dirt, snow and ice accumulations, and the contemporary styling is guaranteed to complement and enhance the appearance of modern vehicles.

12x high density 11W LEDs (premium ‘bin’)
Seamless, low profile design facilitates installation
Dynamic drive modulation optimises light output to preserve longevity of the LEDs
Ultra-reflective optics deliver ‘Drive’ beam pattern
CAE optimised heatsink
E-coat pre-treatment provides maximum corrosion resistance
plně schváleno pro silniční provoz
5 Year Warranty
‘Unbreakable’ polycarbonate lens with lifetime guarantee
IP69K rating
Comes as standard with 30cm cable, including pre-wired male & female connectors
vyrobeno ve Velké Británii

Další informace

Technické údaje:
rozsah napětí:
životnost diod:
Barevná teplota: 5 000 K
Parametry dálkového světla:
délková svítivost (dálkové):
celková svítivost v zorném poli řidiče:
počet diod (dálkové):
příkon (dálkové):
proud při 14.4 V (dálkové):
Certifikace:
dálkové světlo:
Fotometrické údaje:
úroveň 0.25 lx:
úroveň 0.5 lx:
úroveň 1 lx:
úroveň 3 lx:
Horizontální úhel paprsku:
Rozměry a hmotnost světlometu
Šířka (mm): 524
Výška (mm): 64
Hloubka (mm): 68
Hmotnost (g): 1634
Ostatní
Výrobce:
Hmotnost: 1634 g
Rozměry: 524 × 68 × 64 mm

Recenze

Zatím zde nejsou žádné recenze.


Buďte první, kdo ohodnotí „ST12 Evolution“

Napište recenzi - odměníme vás!

1 of 5 stars 2 of 5 stars 3 of 5 stars 4 of 5 stars 5 of 5 stars

1 of 5 stars 2 of 5 stars 3 of 5 stars 4 of 5 stars 5 of 5 stars

Dotaz na produkt - tab

Máte dotaz? Rádi vám poradíme

GDPR *

x1 světlomet ST12 Evolution
x2 sada pro montáž na střed světlometu (1114k)
x1 kabelový svazek
x1 návod k instalaci
