Elektroinstalace & kabeláž
Všechny světlomety Lazer se prodávají s předem zapojeným zásuvkovým konektorem (samice) připojeným k konektoru (samec) kabelového svazku, což umožňuje snadné zapojení do systému vašeho vozidla. Aby se dále usnadnila integrace světel do elektrického zapojení vašeho vozidla, vyvinula společnost Lazer ucelenou řadu kabelových sad vhodných pro všechny série produktů našeho sortimentu. Pokud není uvedeno jinak, jsou instalační sady určeny pro použití s našimi sériemi světlometů ST / Triple-R / Linear, které byly schváleny ECE.
Zobrazen 1. – 12. z 19 výsledků
Prodlužovací kabel 3m (řada ST/LINEAR/Triple R)
Třímetrový prodlužovací kabel pro světlomety řady ST/LINEAR/RRR (konektory TE-Superseal).
The 3m cable extension kit is ideal for custom builds and mounting which requires additional wiring to the lights. Includes IP68 connectors at either end. Suitable for Lazer Lamps ST, Linear and Triple-R lamps (ECE approved models only).
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
400,00 Kč
Prodlužovací kabel 3m (řada T16 / T24 / T28 / Triple-R 16/24/28)
Třímetrový prodlužovací kabel pro světlomety řady T (vysokoproudé konektory TE).
The 3m cable extension kit is ideal for custom builds and mounting which requires additional wiring to the lights. Includes IP68 connectors at either end. Suitable for Lazer Lamps T16, T24, and T28, and Triple-R 16, 24, and 28 lamps only.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to allow easy wiring in to your vehicle system.
500,00 Kč
CANM8 Cannect Contactless Reader
The Contactless Reader option allows the CAN Bus interface to read vehicle CAN Bus data without any actual metal to metal connection between the interface and the vehicle CAN Bus. The reader is secured around a section of the vehicle CAN Bus wiring and data is read by an induction method, thus protecting any manufacturers warranty.
This version of the Contactless reader works on 5v and is directly compatibility with the CANM8 Cannect Highbeam.
The reader features a strong locking clamp to retain its position around the CAN wiring. The CAN wiring must first be straightened for a short distance and the HI - LO wires identified and placed in to the corresponding channels of the reader before the reader housing can be closed over the wiring.
Installation is quick and easy; simply remove the CAN HI and LO connection wires from the CANNECT interface harness and fit the HI and LO connection
1 500,00 Kč
Sběrnice CANM8
The CANM8 CANNECT HIGHBEAM is a CAN Bus Interface that provides a quick solution for detecting High Beam activity, for the installation of additional driving lights via a relay.
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN Hi & CAN Lo) along with a connection to a switched 12v power supply and an earth connection. The interface provides a 12V, 1A output when the vehicle main beam is activated.
The interface incorporates a multi-function miniature status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
The LED Status is as follows:
- Flashing Red: Searching for CAN information
- Solid Red: CAN data received but vehicle type not identified
- Solid Green: CAN data received and vehicle type recognised
- Flashing Green: Vehicle speed detected
For more information on CAN
1 750,00 Kč
Kabelový svazek ‘Pickup’ pro čtyři světla (ST/LINEAR/Triple R)
Kabelový svazek pro čtyři světla se spojem (konektory TE-Superseal).
The perfect solution for wiring four Lazer ST, Linear or Triple-R range lamps (ECE approved models only). The setup is quick, easy, and reliable with TE Superseal connections and no configuration procedures.
Lazer harness kits feature a 12V relay, 35A fuse, and battery terminal at one end. We utilise the best corrosion proof splice systems currently on the market, comprising copper crimp barrels and separate, heat-shrinkable transparent sealing sleeve, ensuring that when you integrate the lights into your vehicle, your system remains fully protected.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
2 200,00 Kč
Kabelový svazek s vypínačem pro čtyři světla (ST/LINEAR/Triple R)
Kabelový svazek s vypínačem pro jedno světlo řady ST/RRR/R2-T (konektor TE-Superseal).
The perfect solution for wiring four Lazer ST, Linear and Triple-R range lamps (ECE approved models only). The setup is quick, easy, and reliable with TE Superseal connections and no configuration procedures. Lazer harness kits feature a 12V relay, 25A fuse, and battery terminal at one end, and allows for the operation of up to four lamps via an on/off switch which can be mounted inside your vehicles cockpit.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
1 500,00 Kč
Kabelový svazek pro čtyři světla s CPD modulem a LED vypínačem
Kabelový svazek pro čtyři světla řady ST s Cartek Power Distribution modulem a vypínacím LED panelem (konektory TE-Superseal).
The professional solution for your rally setup encompassing four Lazer lamps, where power distribution is controlled by a Cartek 4-channel module which includes internal fuses, circuit breakers, and relays. Setup is quick, easy, and reliable with TE Superseal connections and no configuration procedures. Lights can be controlled using an LED dual pushbutton switch panel.
14 200,00 Kč
Kabelový svazek pro jedno světlo (série RS)
Kabelový svazek pro jedno světlo řady RS s vodotěsným spojem Rayfast.
The ideal solution for wiring your Lazer RS range Lamp. The setup is quick, easy, and reliable with TE Superseal connections and no configuration procedures.
Lazer harness kits feature a 12V relay, 15A fuse, and battery terminal at one end. We use the best corrosion proof splice systems currently on the market, comprising copper crimp barrels and separate, heat-shrinkable transparent sealing sleeve, ensuring that the connections for: daytime running lights, position light, and driving light remain fully protected.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
1 430,00 Kč
Kabelový svazek s vypínačem pro světlo (řady T-16/24/28, Triple-R 16/24/28)
Kabelový svazek pro jedno světlo řady T s vypínačem (vysokoproudý konektor TE).
Specifically designed for wiring a Lazer T16 / T24 / T28 or Triple-R 16 / 24 / 28 lamp, the setup is quick, easy, and reliable with TE Superseal connections and no configuration procedures. The kit features a 12V relay, 35A fuse, and battery terminal at one end, allowing for the operation of specific lamps via an on/off switch which can be mounted inside your vehicles cockpit.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
Note - all Lazer 16/24/28 LED light bars come supplied with a wiring kit as standard.
1 430,00 Kč
Kabelový svazek pro jedno světlo s vypínačem (série Utility)
Kabelový svazek pro jedno světlo řady Utility s vypínačem.
The ideal solution for wiring your Utility Series lamp. The setup is quick, easy, and reliable with Deutsch connections and no configuration procedures. The kit features a 12V relay, 10A fuse, a battery terminal at one end, and 4m of flex, and allows for the operation of specific lamps via an on/off switch which can be mounted inside your vehicles cockpit.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
1 400,00 Kč
Kabelový svazek jedno světlo (řady ST/LINEAR/Triple R)
Kabelový svazek pro jedno světlo řady ST/Linear/Triple-R (konektor TE-Superseal).
The ideal solution for wiring a single Lazer ST, Linear, or Triple-R lamp. The setup is quick, easy, and reliable with TE Superseal connections and no configuration procedures.
The kit features a 12V relay, fuse, and battery terminal at one end Lazer harness kits feature a 12V relay, fuse, and battery terminal at one end. We use the best corrosion proof splice systems currently on the market, comprising copper crimp barrels and separate, heat-shrinkable transparent sealing sleeve, ensuring that the 'high beam' connection remains fully protected.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
1 200,00 Kč

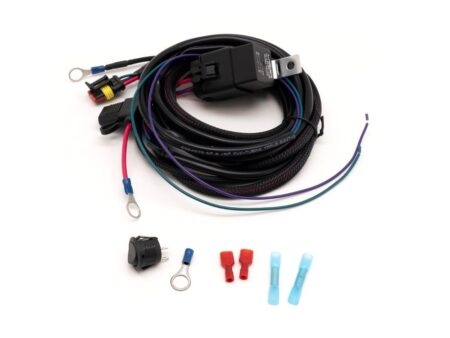

Kabelový svazek s vypínačem pro jedno světlo (řady ST/LINEAR/Triple R)
Kabelový svazek s vypínačem pro jedno světlo řady ST/Linear/Triple-R (konektor TE-Superseal).
The ideal solution for wiring your Lazer ST, Linear or Triple-R lamps (ECE approved models only). The setup is quick, easy, and reliable with TE Superseal connections and no configuration procedures. The kit features a 12V relay, 20A fuse, and battery terminal at one end, and allows for the operation of specific lamps via an on/off switch which can be mounted inside your vehicles cockpit.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
1 255,00 Kč
